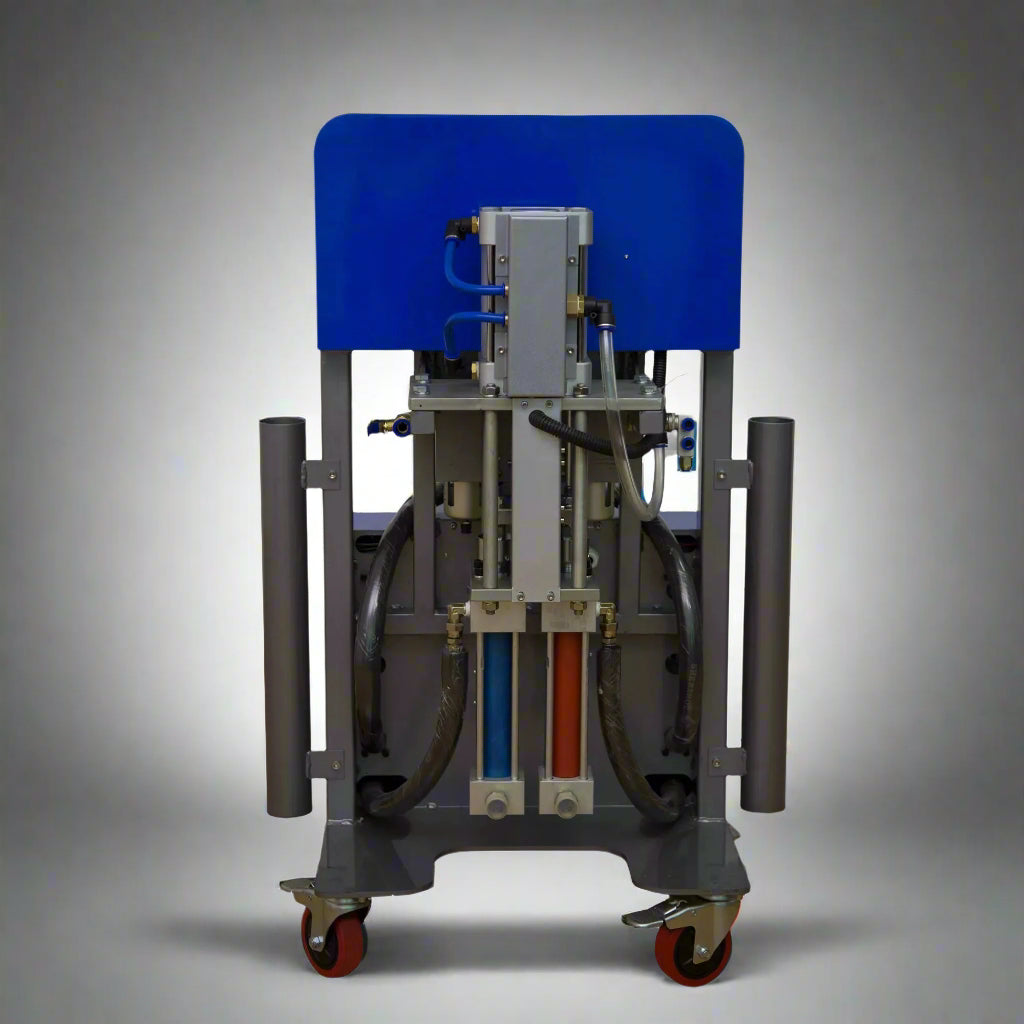

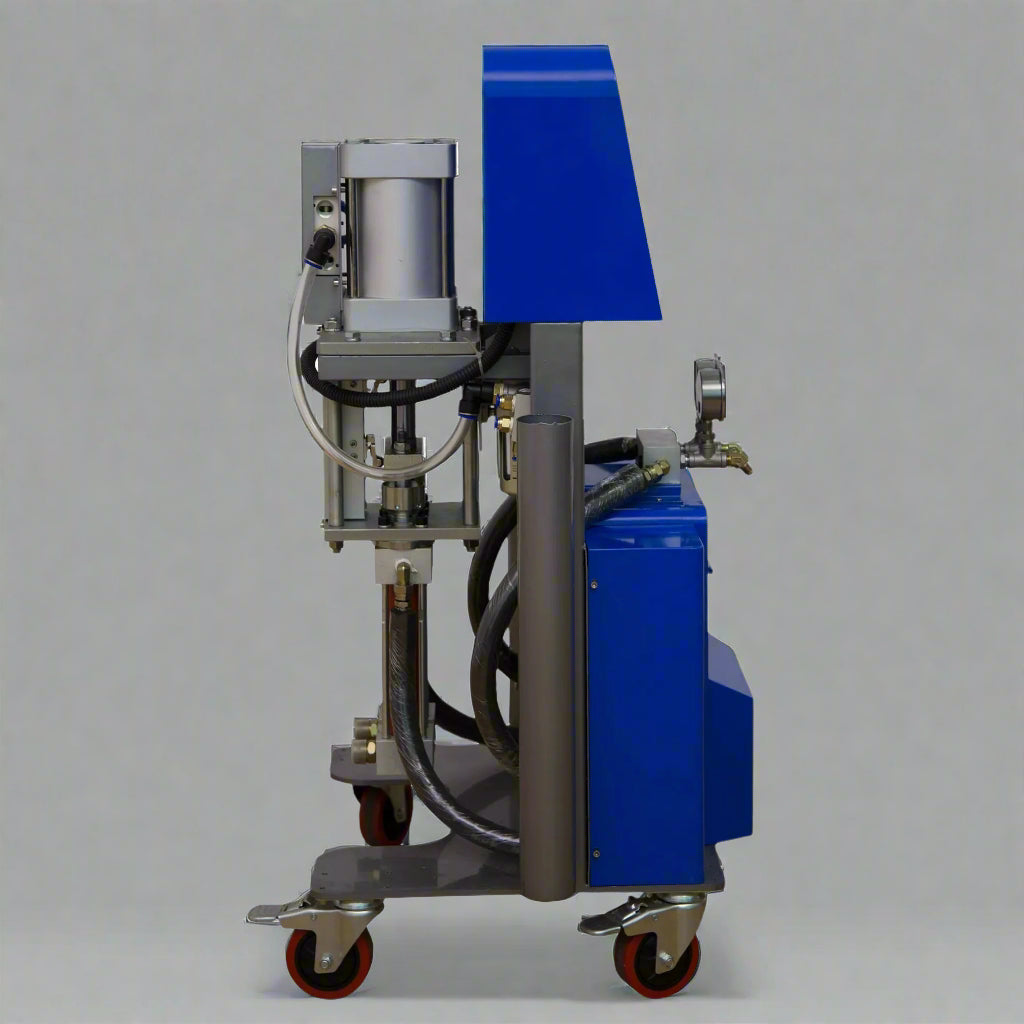

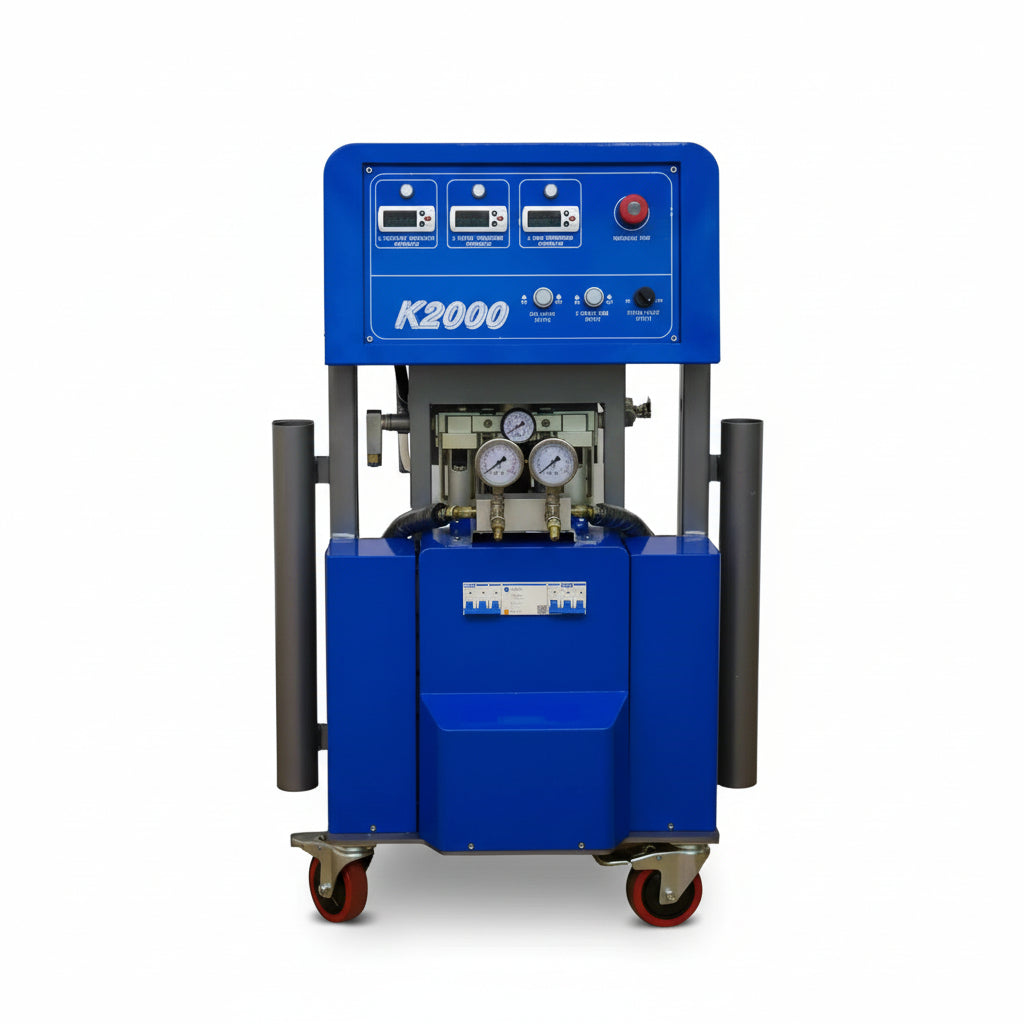

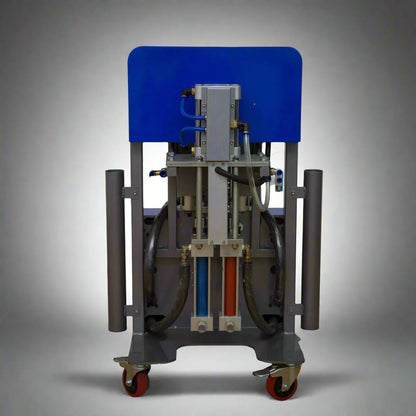

Professional Reanin K2000 Pneumatic Polyurethane Spray Foam Machine
Industrial High-Pressure Proportioner System for Insulation, Polyurea, and Protective Coatings
OVERVIEW
Maximize your commercial spraying capabilities with the Professional Reanin K2000 Polyurethane Spray Foam Machine. Engineered for insulation contractors and industrial manufacturing, this high-pressure, air-driven proportioner system delivers exceptional accuracy for polyurethane foam, polyurea elastomers, and injection sealants. Operating on a fully pneumatic drive system, the K2000 eliminates the need for complex electrical pump components while delivering a robust output of up to 10 kg/min (22 lb/min). Featuring independent temperature zones for the A/B chemicals and the heated hose, alongside an automatic anti-crystallization parking system, this unit provides consistent material viscosity, minimized downtime, and professional-grade field reliability.
SYSTEM HIGHLIGHTS
Fully Pneumatic Drive Architecture: The air-driven pumping system requires no electricity for fluid transfer, simplifying operation and drastically reducing electrical maintenance requirements.
Triple-Zone Precision Heating: Features variable-frequency heaters with independent temperature controls for the A-side, B-side, and hose, maintaining stable fluid temperatures up to 80°C (176°F) to ensure optimal material expansion and adhesion.
Anti-Crystallization Protection: Equipped with an automatic stop/reset function that coats the pump shafts during shutdown, preventing ISO crystallization and protecting internal seals from premature failure.
Advanced Material Filtration: Multi-stage filtration integrated into the main unit, transfer pumps, and spray gun significantly reduces clogging and maintains a consistent, high-pressure spray pattern.
Air-Purge Alloy Spray Gun: Includes a lightweight, self-cleaning alloy spray gun designed with minimal wear parts, ensuring operator comfort and rapid field maintenance.
Insulated Heated Hose: The 15 m (49.2 ft) copper-ribbon heated hose features a wear-resistant protective sleeve that prevents thermal loss, electrical shorts, and job site abrasions.
TECHNICAL SPECIFICATIONS
Feature
Details (Metric / Imperial)
Material Ratio
1:1 (Polyurethane / Polyurea)
Max Working Pressure
20 MPa (2900 PSI)
Max Output Capacity
10 kg/min (22 lb/min)
Max Fluid Temperature
80°C (176°F)
Air Source Requirement
0.5–0.8 MPa (72–116 PSI), 1 m³/min
Primary Voltage
220V Single Phase, 60Hz (11 kW Total Power)
MAINTENANCE & REPLACEMENT COMPONENTS
To ensure maximum uptime and operational safety, utilize the following verified replacement parts specifically engineered for the Reanin K2000 platform:
Component Type
Description
SKU
Primary System
K2000 Spray Foam Machine
73K2000
Hose Replacement

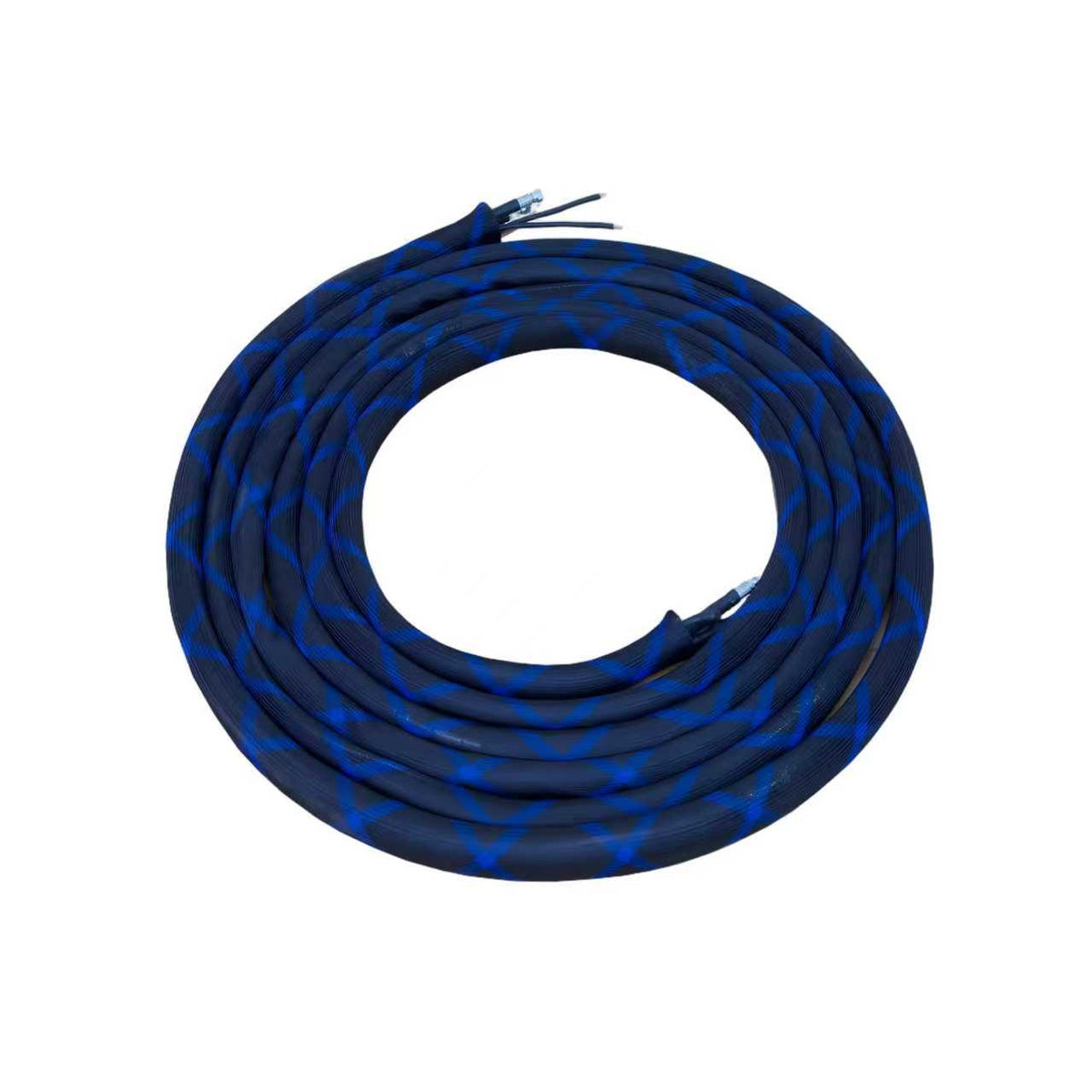

Spare 15 m (49.2 ft) Heated Hose
73KSPH
INCLUDED IN THE BOX
1x Reanin K2000 Main Machine
1x Self-Cleaning Alloy Spray Gun
2x Pneumatic Transfer Pumps
1x 15 m (49.2 ft) Heated Hose Assembly
1x Whip Hose & Transfer Pump Hoses
Complete Air Piping, Tools, Spare Parts Kit, and User Manual
IDEAL APPLICATIONS
Commercial Insulation – High-yield polyurethane foam applications for roofing, walls, and cold storage facilities.
Protective Coatings – Precision spraying of polyurea for truck bed liners, waterproofing membranes, and industrial flooring.
